交叉圓錐符合JB2300

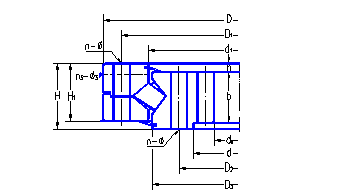

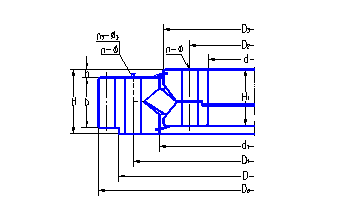

| 軸承型號Designations | 外 形 尺 寸 Boundary dimensions | 安 裝 孔 尺 寸 Bolt hole diameter | 結 構 尺 寸 Structure dimensions | 齒 輪 參 數 Gear parameters | 額定負荷 Basic load ratings | 質量 Mass | ||||||||||||||||||
| 無齒式 | 外齒式 | 內齒式 | D | d | H | D1 | D2 | n | φ | D3 | d1 | H1 | h | n3 | φ3 | m | Da | Z | da | Z | b | x | Coa | |
| non-gear type | external gear type | internal gear type | mm | mm | mm | mm | mm | mm | mm | mm | 104 N | kg | ||||||||||||
| 5792/900 | 1150 | 900 | 90 | 1105 | 950 | 24 | 19 | 1021 | 1025 | 78 | 12 | 6 | M8×1 | -- | -- | -- | -- | -- | -- | -- | 165 | 227 | ||
| 3-935G | 940 | -- | 90 | 900 | 752 | 24 | 19 17 | 823 | 827 | 78 | 12 | 6 | M8×1 | 4 | -- | -- | 672 | 170 | 78 | 0 | 133 | 180 | ||
| 7797/1660G | 2150 | 1660 | 245 | 2100 | 1735 | 30 | 32 | 1909 | 1921 | 220 | 25 | 3 | M10×1 | 16 | -- | -- | 1581 | 100 | 190 | +0.35 | 996 | 2194 | ||
| 120·25·500·** | 121·25·500·** | 123·25·500·** | 602 | 398 | 75 | 566 | 434 | 20 | 18 | 498.5 | 501.5 | 65 | 10 | 4 | M10×1 | 5 | 630 | 123 | 365 | 74 | 60 | +0.5 | 104 | 80 |
| 122·25·500·** | 124·25·500·** | 602 | 398 | 75 | 566 | 434 | 20 | 18 | 498.5 | 501.5 | 65 | 10 | 4 | M10×1 | 6 | 630 | 102 | 366 | 62 | 60 | +0.5 | 104 | 80 | |
| 120·25·560·** | 121·25·560·** | 123·25·560·** | 662 | 458 | 75 | 626 | 494 | 20 | 18 | 558.5 | 561.5 | 65 | 10 | 4 | M10×1 | 5 | 690 | 135 | 425 | 86 | 60 | +0.5 | 116 | 90 |
| 122·25·560·** | 124·25·560·** | 662 | 458 | 75 | 626 | 494 | 20 | 18 | 558.5 | 561.5 | 65 | 10 | 4 | M10×1 | 6 | 690 | 112 | 426 | 72 | 60 | +0.5 | 116 | 90 | |
| 120·25·630·** | 121·25·630·** | 123·25·630·** | 732 | 528 | 75 | 696 | 564 | 24 | 18 | 628.5 | 631.5 | 65 | 10 | 4 | M10×1 | 6 | 774 | 126 | 492 | 83 | 60 | +0.5 | 130 | 100 |
| 122·25·630·** | 124·25·630·** | 732 | 528 | 75 | 696 | 564 | 24 | 18 | 628.5 | 631.5 | 65 | 10 | 4 | M10×1 | 8 | 776 | 94 | 488 | 62 | 60 | +0.5 | 130 | 100 | |
| 120·25·710·** | 121·25·710·** | 123·25·710·** | 812 | 608 | 75 | 776 | 644 | 24 | 18 | 708.5 | 712.5 | 65 | 10 | 4 | M10×1 | 6 | 852 | 139 | 570 | 96 | 60 | +0.5 | 149 | 110 |
| 122·25·710·** | 124·25·710·** | 812 | 608 | 75 | 776 | 644 | 24 | 18 | 708.5 | 712.5 | 65 | 10 | 4 | M10×1 | 8 | 856 | 104 | 568 | 72 | 60 | +0.5 | 149 | 110 | |
| 120·28·800·** | 121·28·800·** | 123·28·800·** | 922 | 678 | 82 | 878 | 722 | 30 | 22 | 798.5 | 801.5 | 72 | 10 | 6 | M10×1 | 8 | 968 | 118 | 632 | 80 | 65 | +0.5 | 185 | 170 |
| 122·28·800·** | 124·28·800·** | 922 | 678 | 82 | 878 | 722 | 30 | 22 | 798.5 | 801.5 | 72 | 10 | 6 | M10×1 | 10 | 970 | 94 | 630 | 64 | 65 | +0.5 | 185 | 170 | |
| 120·28·900·** | 121·28·900·** | 123·28·900·** | 1022 | 778 | 82 | 978 | 822 | 30 | 22 | 898.5 | 901.5 | 72 | 10 | 6 | M10×1 | 8 | 1064 | 130 | 736 | 93 | 65 | +0.5 | 209 | 190 |
| 122·28·900·** | 124·28·900·** | 1022 | 778 | 82 | 978 | 822 | 30 | 22 | 898.5 | 901.5 | 72 | 10 | 6 | M10×1 | 10 | 1070 | 104 | 730 | 74 | 65 | +0.5 | 209 | 190 | |
| 120·28·1000·** | 121·28·1000·** | 123·28·1000·** | 1122 | 878 | 82 | 1078 | 922 | 36 | 22 | 998.5 | 1001.5 | 72 | 10 | 6 | M10×1 | 10 | 1190 | 116 | 820 | 83 | 65 | +0.5 | 233 | 210 |
| 122·28·1000·** | 124·28·1000·** | 1122 | 878 | 82 | 1078 | 922 | 36 | 22 | 998.5 | 1001.5 | 72 | 10 | 6 | M10×1 | 12 | 1188 | 96 | 816 | 69 | 65 | +0.5 | 233 | 210 | |
| 120·28·1120·** | 121·28·1120·** | 123·28·1120·** | 1242 | 998 | 82 | 1198 | 1042 | 36 | 22 | 1118 | 1122 | 72 | 10 | 6 | M10×1 | 10 | 1300 | 127 | 940 | 95 | 65 | +0.5 | 262 | 230 |
| 122·28·1122·** | 124·28·1120·** | 1242 | 998 | 82 | 1198 | 1042 | 36 | 22 | 1118 | 1122 | 72 | 10 | 6 | M10×1 | 12 | 1308 | 106 | 936 | 79 | 65 | +0.5 | 262 | 230 | |
| 120·32·1250·** | 121·32·1250·** | 123·32·1250·** | 1390 | 1110 | 91 | 1337 | 1163 | 40 | 26 | 1248 | 1252 | 81 | 10 | 6 | M10×1 | 12 | 1452 | 118 | 1044 | 88 | 75 | +0.5 | 321 | 350 |
| 122·32·1250·** | 124·32·1250·** | 1390 | 1110 | 91 | 1337 | 1163 | 40 | 26 | 1248 | 1252 | 81 | 10 | 6 | M10×1 | 14 | 1456 | 101 | 1036 | 75 | 75 | +0.5 | 321 | 350 | |
| 120·32·1400·** | 121·32·1400·** | 123·32·1400·** | 1540 | 1260 | 91 | 1487 | 1313 | 40 | 26 | 1398 | 1402 | 81 | 10 | 6 | M10×1 | 12 | 1608 | 131 | 1188 | 100 | 75 | +0.5 | 358 | 400 |
| 122·32·1400·** | 124·32·1400·** | 1540 | 1260 | 91 | 1487 | 1313 | 40 | 26 | 1398 | 1402 | 81 | 10 | 6 | M10×1 | 14 | 1610 | 112 | 1190 | 86 | 75 | +0.5 | 358 | 400 | |
